SAROS380N
-Search & Rescue System-
Gyro‐Stabilized Sensors Package (GSP)
Consoles Station Package (CSP)
The SAROS380N is an electro-optic system for day/night use, providing high performances & intended for navigation, search & rescue observation and surveillance on fixed ground stations or moving platforms such as ships, vehicle etc. The system consists of Gyro-Stabilized Sensors Package(GSP) and Consoles Station Package(CSP).

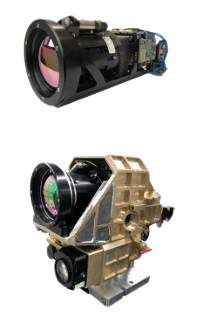

GSP is a multi sensor electro-optic payload mounted on a 4 axis gyro stabilized platform. The standard electro optic payload includes High Definition MW Thermal Imager and colour Daylight cameras and an Eye Safe Laser Range Finder. CSP is multi-function controlling System includes Video Data Management(VDM) and Digital Video Recorder. User may option automatic video tracking can lock onto designated targets in either band.
Feature
• Automatic tracking, for maritime, aerial and ground targets.
• Automatic scan modes. Parallel or waypoint surveillance.
• Video recording, controlled from the system control panel.
• Maritime qualified for the harshest environmental conditions.
• Possibility of automatic alarms for target intrusion.
• Up to three control posts, local or remote control & external system
• State of the Art image stabilization through 4 axis platform.
• Sub milliradian Sensors alignment.
• Observation/Surveillance day and night, for detection and identification.
• Standard systems includes three sensors:
o High Definition MWIR Camera.
o High Definition colour continuous zoom day light camera
o Eye safe Laser Range Finder.
• SAROS380Nandworkingparametersavailable for integration in other systems. System can be slaved to any other System(i.e. Radar) to enhance target identification
SAROS380N system is part of a wide range of Optronic products for a variety of platforms including ships, vehicle, Tower and Border Law Enforcement applications. They have all been designed to be integrated with other systems such as radars, navigational systems, digital maps & combat systems, enhancing target identification and location. As well as the standard payload, other options such as Low Light or Spotter visible band cameras or Laser Designators or Laserlluminators are available.

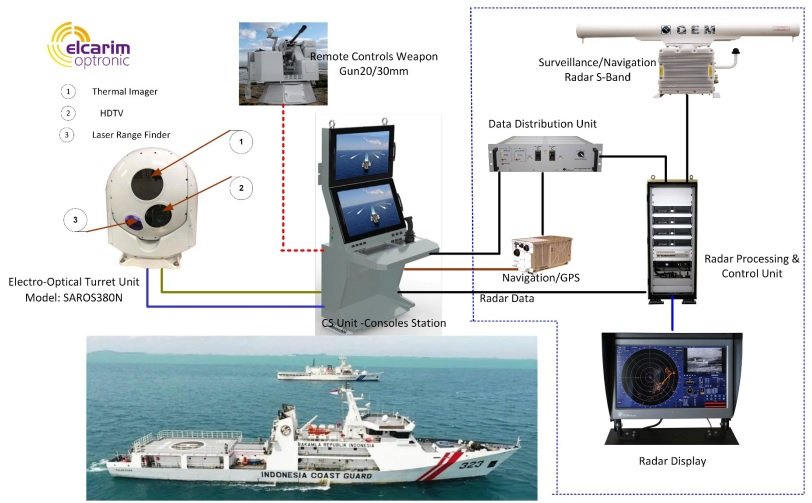

SAROS380N Configuration System
